Evaluation and Redesign of Data Visualization in Operating Room Management Systems: A Mixed-Method Design Study

Aim and Research Question(s)

This work aims to investigate how data visualizations in operating room (OR) management systems can support situational awareness and role-specific information needs. Two research questions were formulated:

1. What visualization-related requirements can be identified among OR team members regarding the visualization of an OR management dashboard?
2. What differences in interaction behaviour, usability perceptions, and user preferences can be observed among OR team members when comparing a general OR dashboard prototype with a role-adapted OR dashboard prototype?

Background

In the OR, effective decision-making depends on situational awareness (Endsley, 1995). Despite the potential of perioperative dashboards to support workflow coordination (Joseph et al., 2020), role-specific information needs and usability remain underexplored.

Methods

• Design Study Methodology
• 8 semi-structured expert interviews + visualization literacy
• Iterative development of 1 general and 3 role-adapted dashboards
• Evaluation (n = 8): Task-based testing + think-aloud protocol, System Usability Scale (SUS) & Preference questionnaire

Results and Discussion

• Role-specific information needs were identified across different professional roles.
• Participants perceived the role-adapted dashboard as providing more relevant information at a glance.
• Mean SUS: 86.6 (General) vs. 94.4 (Role-Adapted).
• 62.5% preferred the role-adapted dashboard, 37.5% the general dashboard.

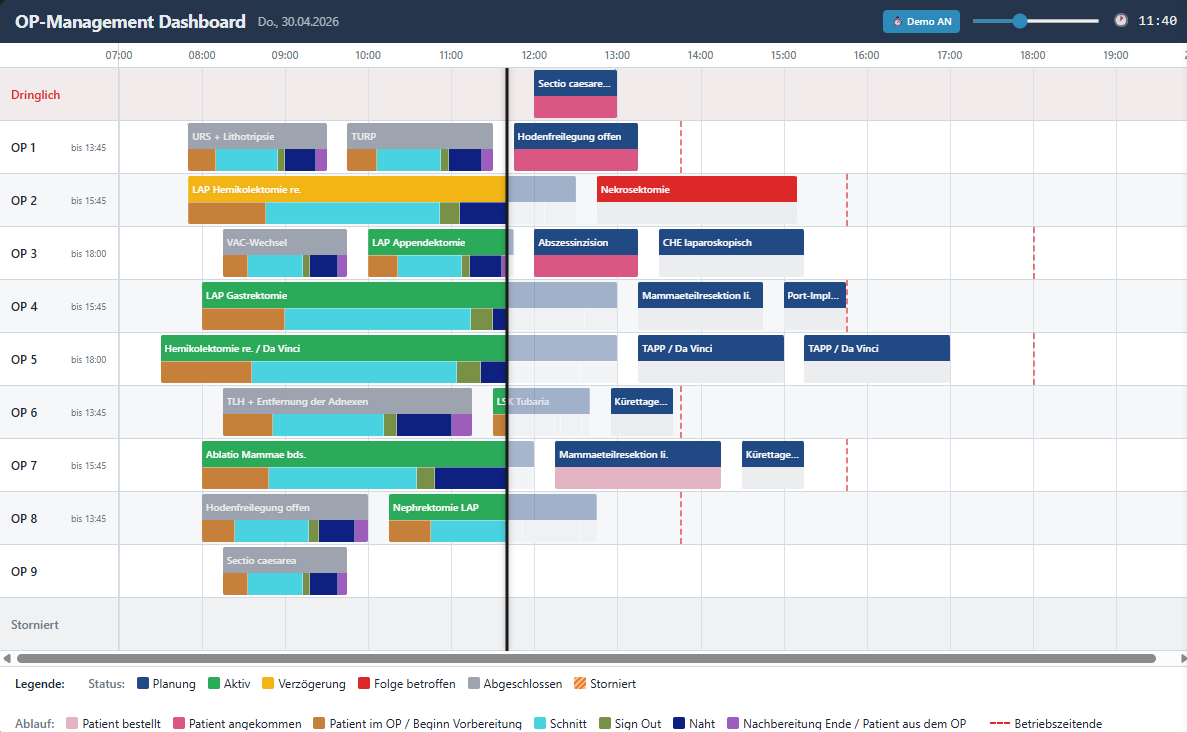

Figure 1. General OR dashboard. Source: Author with the tool Lovable

Conclusion

The findings indicate that OR team members require clear, structured, and role-specific information to support workflow coordination and situational awareness. Role-adapted dashboards may enhance information access in the OR, while highlighting the need to balance information richness and visual simplicity.

References

Endsley, M. R. (1995). Toward a theory of situation awareness in dynamic systems. Human Factors: The Journal of the Human Factors and Ergonomics Society, 37(1), 32–64. https://doi.org/10.1518/001872095779049543

Joseph, T. T., Wax, D. B., Goldstein, R., Huang, J., McCormick, P. J., & Levin, M. A. (2020). A web-based perioperative dashboard as a platform for anesthesia informatics innovation. Anesthesia & Analgesia, 131(5), 1640–1645. https://doi.org/10.1213/ANE.0000000000005193
